产品介绍
DEVTOP AIX5970-A4是是容天专为深度学习的研发人员定制的超算工作站。支持支持单颗 AMD Ryzen Threadripper PRO 7000 WX 系列，Socket sTR5，支持4块双宽（Geforce/Quadro）GPU卡，支持8 x DDR5 DIMM，为深度学习和HPC业务处理提供更好的性能。支持 4 x M.2 插槽, 2 x SlimSAS 插槽支持 PCIe 4.0 x4 模式 NVMe 设备 ， 4 x SATA 6Gb/s 端口，大幅提升整机存储性能。

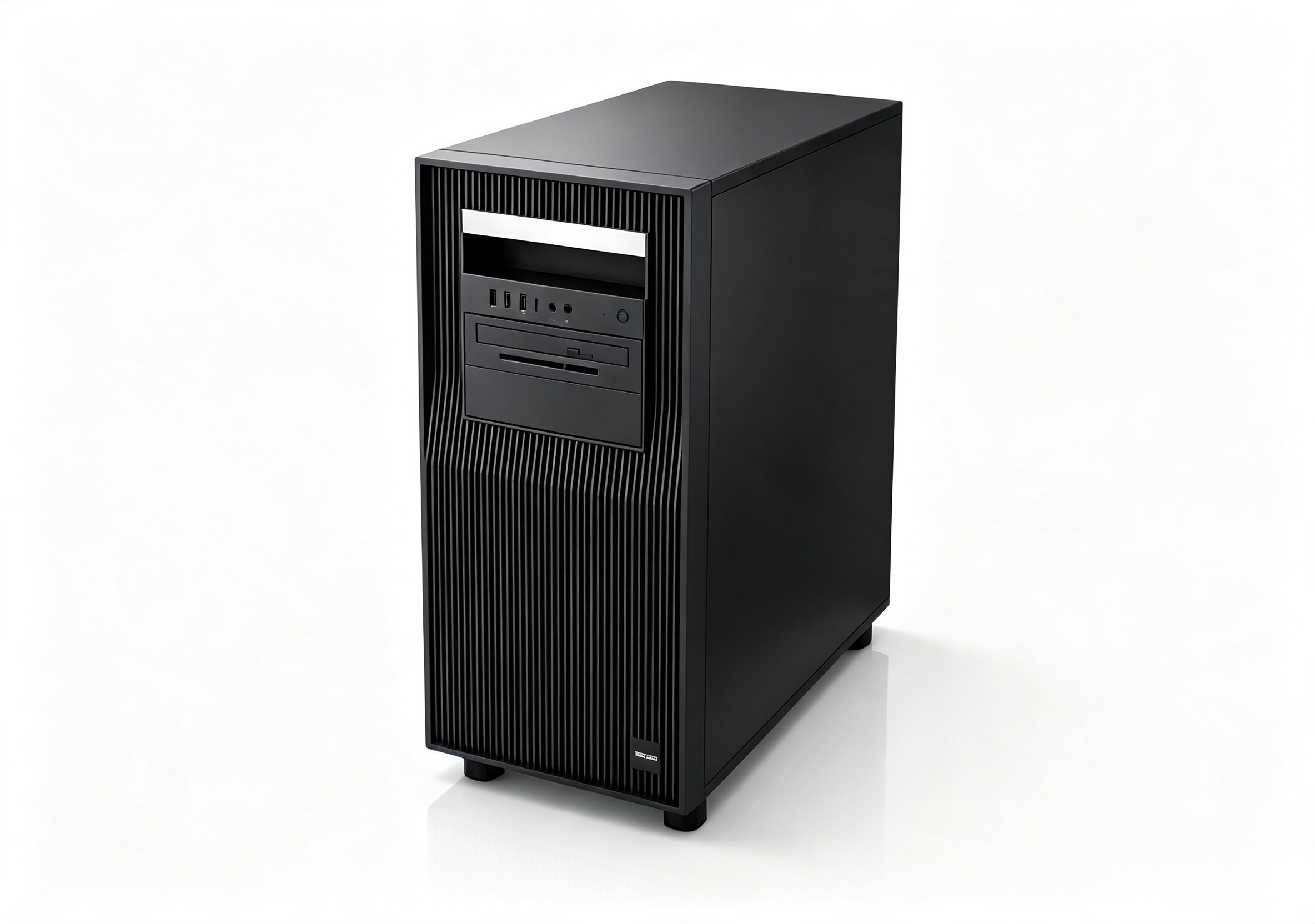

机箱为塔式机箱，550×235×535mm（高*宽*深），电源为 2000W/2600W长城电源。
采用 Windows11或Windows10 64位操作系统，预装了当前流行的深度学习框架、软件，支持海量数据的深度学习应用，特别适合有大规模数据深度学习需求的高校、企业、事业单位。
产品特点
1.拓展性强，高效智能
单颗 AMD Ryzen Threadripper PRO 7000 WX 系列
支持4块双宽（Geforce/Quadro）GPU卡
8个DIMM插槽，支持DDR5
支持 4 x M.2 插槽, 2 x SlimSAS 插槽支持 PCIe 4.0 x4 模式 NVMe 设备 ， 4 x SATA 6Gb/s 端口
支持PCIe5.0总线，6 x PCIe 5.0 x16 slots，1 x PCIe 5.0 x16 slot (x8 mode)
2000W/2600W长城电源
采用业内最优的元器件，实现最优工作环境，更加节能环保
2.应用举例
- 深度学习/机器学习/推理
- 高性能计算
- 移动通信、PACS系统、数据中心
- 自动驾驶、视频监控、人脸识别
- 智能教学、科研院所和实验室

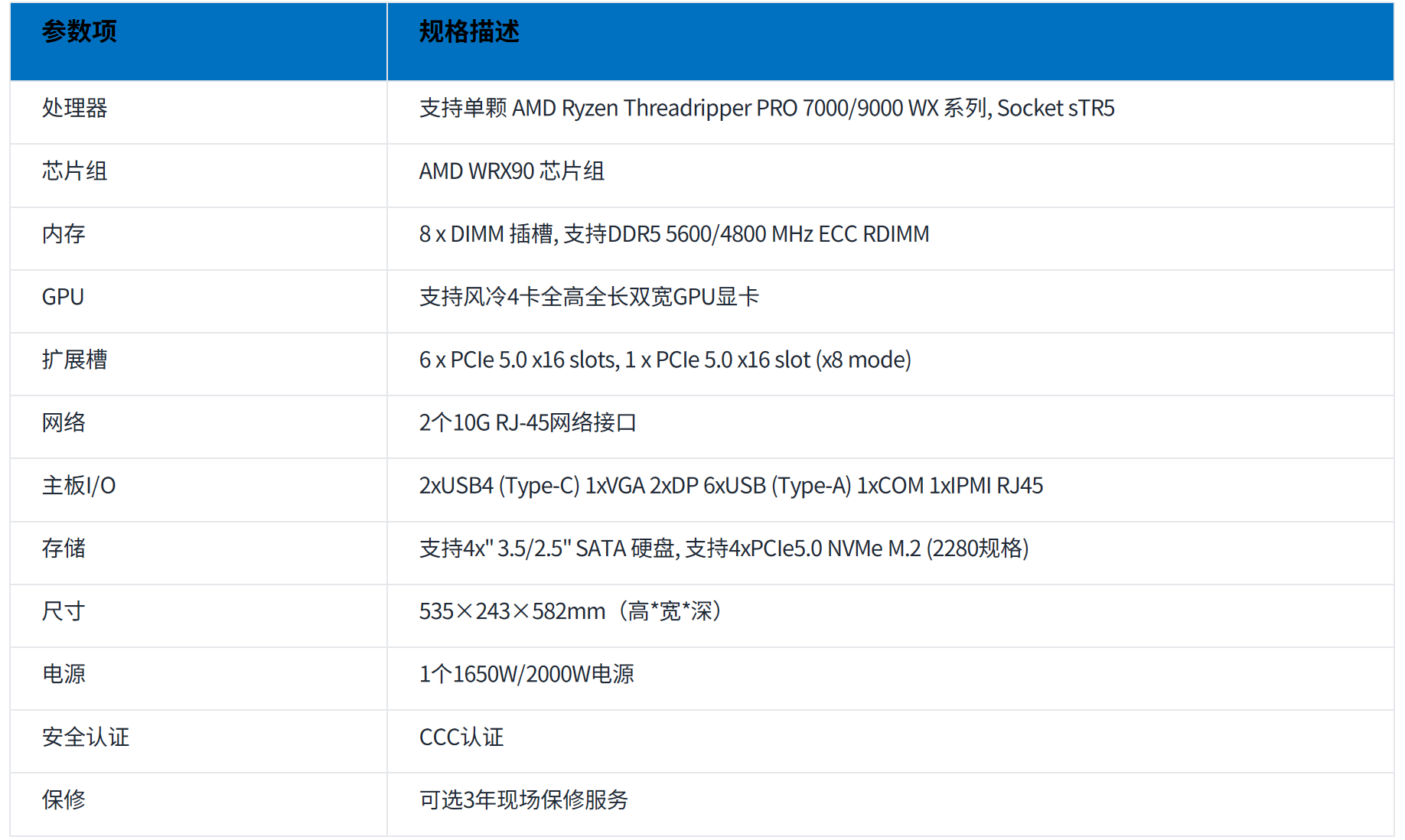

技术规格
1.主板
2.机箱
支持6个3.5 HDD支架，2个2.5 SSD支架
5.产品参数
AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series*
*Refer to www.asus.com for CPU support list.
8 x DIMM slots, DDR5, ECC Registered Memory*
8 Channel Memory Architecture
*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*
6 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot (x8 mode)
*Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
**To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports*
AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD WRX90 Chipset
2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
1 x Intel® dual 10Gb Ethernet
ASUS LANGuard
Rear USB (Total 9 ports)
2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 ports (2 x Type-A )
Front USB (Total 7 ports)
1 x USB 20Gbpsconnector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Realtek ALC1220P Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback
Audio Features
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
*A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
* This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.
2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (2 x Type-A)
1 x VGA port
2 x mini DisplayPort IN
1 x Intel® dual 10Gb Ethernet ports
1 x Realtek 1Gb Ethernet port
2 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button
